Specifications of DELL E2420HS

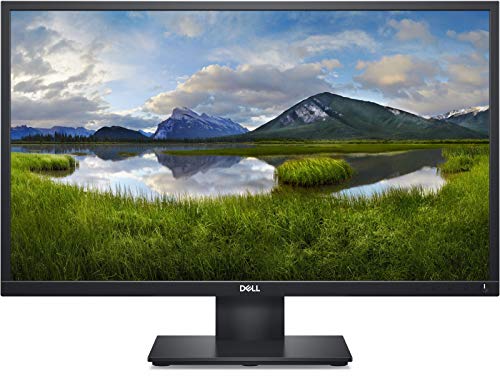

DELL E Series E2420HS 61 cm (24") 1920 x 1080 pixels Full HD LCD Black
DELL
A 23.8" monitor enhances your daily workflow. Featuring a height adjustable stand, Full HD resolution and integrated speakers in a space-saving design.
Release date: 2020-01-19.
EAN: 5397184200704,
1 HDMI ports V1.4
Speakers included
VESA mount
1 VGA input
| Weight & dimensions | |
|---|---|
| Bezel width (bottom): | 1.82 cm |
| Bezel width (top): | 1.18 cm |
| Bezel width (side): | 1.18 cm |
| Weight (without stand): | 3.3 kg |
| Height (without stand): | 32.6 cm |
| Depth (without stand): | 5.24 cm |
| Width (without stand): | 55.1 cm |
| Weight (with stand): | 4.54 kg |
| Height (with stand): | 489.1 mm |
| Depth (with stand): | 187 mm |
| Width (with stand): | 550.6 mm |
| Power | |
| Power consumption (off): | 0.2 W |
| Power consumption (max): | 24 W |
| Power consumption (standby): | 0.3 W |
| Power consumption (typical): | 11.9 W |
| Energy consumption (SDR) per 1000 hours: | 12 kWh |
| Energy efficiency class (SDR): | C |
| Energy efficiency scale: | A to G |
| Input current: | 0.8 A |
| AC input frequency: | 50/60 Hz |
| AC input voltage: | 100 - 240 V |
| Power consumption (PowerSave): | 12.6 W |
| Display | |
| Colour gamut: | 83% |
| DDC/CI: | Yes |
| Viewable size diagonal: | 60.5 cm |
| Viewable size, vertical: | 29.6 cm |
| Viewable size, horizontal: | 52.7 cm |
| Vertical scan range: | 56 - 76 Hz |
| Horizontal scan range: | 30 - 83 kHz |
| Pixel density: | 92 ppi |
| Pixel pitch: | 0.2745 x 0.2745 mm |
| Response time (fast): | 5 ms |
| 3D: | No |
| Viewing angle, vertical: | 178° |
| Viewing angle, horizontal: | 178° |
| Supported graphics resolutions: | 640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1600 x 900,1920 x 1080 (HD 1080) |
| Backlight type: | LED |
| Response time: | 8 ms (PC screens with 8 milliseconds response ) |
| Display brightness (typical): | 250 cd/m² |
| Display number of colours: | 16.78 million colours |
| Maximum refresh rate: | 60 Hz (PC displays 60 Hz refresh rate ) |
| Contrast ratio (typical): | 1000:1 |
| Screen shape: | Flat |
| Display technology: | LCD |
| HD type: | Full HD (PC screens with Full HD resolution ) |
| Panel type: | IPS (PC screens with IPS technology ) |
| Native aspect ratio: | 16:9 (PC displays with a 16:9 aspect ratio ) |
| Display resolution: | 1920 x 1080 pixels |
| Display diagonal: | 61 cm (24") |
| Operational conditions | |
| Storage relative humidity (H-H): | 5 - 90% |
| Operating relative humidity (H-H): | 10 - 80% |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating temperature (T-T): | 0 - 40 °C |
| Ports & interfaces | |
| AC (power) in: | Yes |
| HDCP: | Yes |
| Audio input: | No |
| HDMI version: | 1.4 |
| HDMI ports quantity: | 1 |
| DVI port: | No |
| VGA (D-Sub) ports quantity: | 1 |
| Headphone out: | No |
| HDMI: | Yes |
| Built-in USB hub: | No |
| Ergonomics | |
| On Screen Display (OSD): | Yes |
| Tilt angle range: | -5 - 21° |
| Tiltable: | Yes |
| Panel mounting interface: | 100 x 100 mm |
| Height adjustment: | Yes |
| Cable lock slot: | Yes |
| VESA mounting: | Yes (VESA Mount PC Displays ) |
| Other features | |
| TV tuner integrated: | No |
| On/off switch: | Yes |
| AC adapter included: | Yes |
| Certification: | TCO |
| Design | |
| Feet colour: | Black |
| Front bezel colour: | Black |
| Product colour: | Black |
| Market positioning: | Home |
| Performance | |
| Flicker-free technology: | Yes |
| AMD FreeSync: | No |
| NVIDIA G-SYNC: | No |
| Multimedia | |
| RMS rated power: | 2 W |
| Number of speakers: | 2 |
| Built-in camera: | No |
| Built-in speaker(s): | Yes |
| Packaging data | |
| Package weight: | 6.64 kg |
| Package height: | 115.1 mm |
| Package depth: | 724.9 mm |
| Package width: | 400.1 mm |
| Packaging content | |
| Manual: | Yes |
| Cables included: | AC, HDMI |
| Stand included: | Yes |
| Sustainability | |
| Doesn't contain: | PVC |
| Sustainability certificates: | RoHS, ENERGY STAR |
