Specifications of iiyama T1932MSC-W1SAG

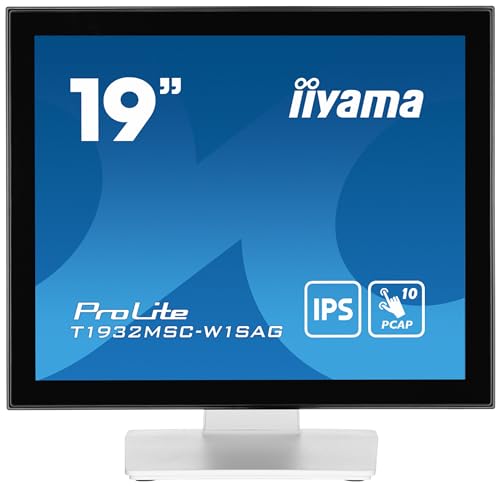

iiyama T1932MSC-W1SAG

iiyama ProLite T1932MSC-W1SAG computer monitor 48.3 cm (19") 1280 x 1024 pixels Full HD LED Touchscreen Tabletop White-T1932MSC-W1SAG

iiyama

19’’ 10pt touch monitor featuring IPS panel technology
The ProLite T1932MSC-B1S 19" 10tp touchscreen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The IPS panel guarantees high performance with accurate and consistent colour reproduction, and wide viewing angles. Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. In addition, the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.

IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

Release date: 2024-01-19.

EAN: 4948570122219,


HDMI 1 HDMI ports

Displayport 1 DisplayPort ports

VESA mount VESA mount

VGA input 1 VGA input


Weight & dimensions
Weight (with stand): 5.4 kg
Height (with stand): 413.5 mm
Depth (with stand): 239.5 mm
Width (with stand): 432 mm
Power
Energy efficiency scale: A to G
Power supply type: External
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Power consumption (off): 0.3 W
Power consumption (standby): 1.5 W
Power consumption (typical): 20 W
Energy consumption (SDR) per 1000 hours: 13 kWh
Energy efficiency class (SDR): E
Display
Response time: 14 ms
Display brightness (typical): 250 cd/m²
Display brightness (peak): 215 cd/m²
Number of simultaneous touchpoints: 10
Touch technology: Multi-touch
Touchscreen technology: Projected capacitive system
Touchscreen type: Tabletop
Backlight type: LED
Display number of colours: 16.7 million colours
Contrast ratio (typical): 1000:1
Screen shape: Flat
Panel type: IPS (PC screens with IPS technology )
HD type: Full HD (PC screens with Full HD resolution )
Touchscreen: Yes
Display technology: LED
Native aspect ratio: 5:4 (PC displays with a 5:4 aspect ratio )
Display resolution: 1280 x 1024 pixels
Display diagonal: 48.3 cm (19")
DDC/CI: Yes
Display diagonal (metric): 48 cm
Viewable size, vertical: 37.4 cm
Viewable size, horizontal: 30 cm
Horizontal scan range: 31 - 80 kHz
Pixel pitch: 0.2928 x 0.2928 mm
Viewing angle, vertical: 178°
Viewing angle, horizontal: 178°
Display surface: Matt (PC screens with a matte surface )
Ports & interfaces
DC-in jack: Yes
HDCP: Yes
Headphone outputs: 1
Audio output: Yes
DisplayPorts quantity: 1
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
USB Touch port: Yes
HDMI: Yes
Built-in USB hub: No
Ergonomics
Cable management: Yes
Panel mounting interface: 100 x 100 mm
VESA mounting: Yes
Tilt adjustment: Yes
Number of OSD languages: 7
On Screen Display (OSD) languages: Simplified Chinese, German, English, Spanish, French, Italian, Japanese
On Screen Display (OSD): Yes
Tilt angle range: 5 - 90°
Design
International Protection (IP) code: IP54
Feet colour: White
Product colour: White
Market positioning: Business
Performance
AMD FreeSync: No
NVIDIA G-SYNC: No
Multimedia
RMS rated power: 2 W
Number of speakers: 2
Built-in camera: No
Built-in speaker(s): Yes
Packaging content
Manual: Yes
Quick start guide: Yes
Power adapter included: Yes
Cables included: Audio, DisplayPort, HDMI, Power, USB
Stand included: Yes
Sustainability
Sustainability certificates: CE, EAC, ErP, REACH, RoHS, UKCA, WEEE, cUL
Sustainability compliance: Yes
